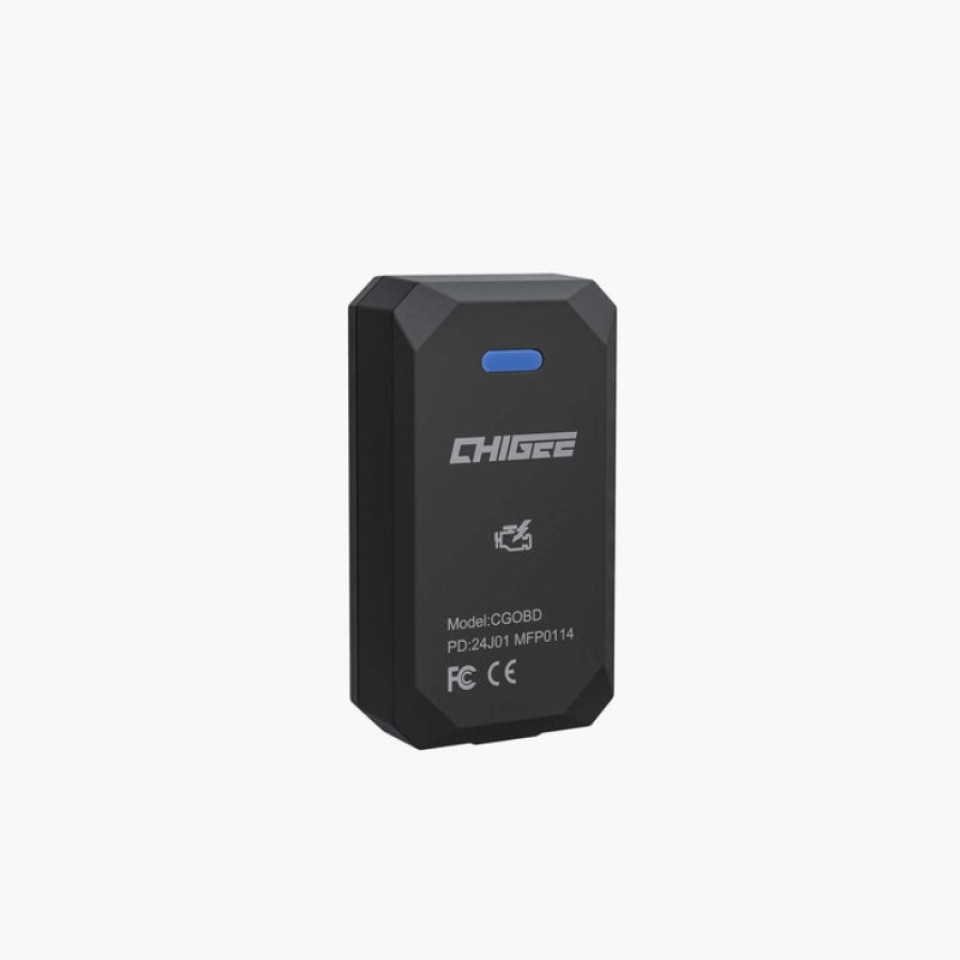

Chigee MFP0114 CG OBD Wireless Module

Motorcycle Compatibility

The CG OBD module is designed for motorcycles based on their OBD protocol and connector type, not specific models.

1. Direct Compatibility

If your motorcycle uses the ISO 15765-4 CAN (Controller Area Network) OBD protocol and a Euro 5 (6-pin) OBD connector, the CG OBD module works without the need for an adapter. Simply connect it using CG OBD Module.

• Supported Brands and Models:

1. • 2019 and later models: Suzuki, Harley-Davidson, Triumph, CF Moto, KTM, Ducati, Indian, Husqvarna, Aprilia (excluding joint venture brands such as Indian Suzuki).
   • 2022 and later models: Benelli
   • 2024 and later models: Yamaha, Honda Wing, Honda Dreamwing (excluding joint venture brands such as Sundiro Honda and Wuyang Honda).

2. Compatibility with Other Connectors

If your motorcycle uses the ISO 15765-4 CAN protocol but a different OBD connector, the CG OBD module can still be used with an adapter. Please confirm the OBD connector type with the customer service team.

Key Features

• Read Real-Time Engine Data

Access crucial metrics like RPM, throttle position, engine temperature, and more directly on your screen, giving you immediate insights into your motorcycle’s performance.

• Analyze Motorcycle Driving Status

Review and understand your riding behavior with detailed data analysis. Optimize performance, identify patterns, and enhance your overall riding experience.

• Auto Power-Off Sleep Mode

After the engine is turned off, the OBD module will automatically power down and enter sleep mode to conserve energy and protect your motorcycle's battery.

• Hassle-Free, Non-Intrusive Installation

Installing the CG OBD module is quick, easy, and requires no modifications to your motorcycle.

• Overlay & Synchronize Data with Video Files(AIO-5 Lite)

Enhance your ride videos by overlaying synchronized OBD data, creating a dynamic visual representation of your motorcycle’s performance during every moment of the journey. Note: This feature is currently under development and will be available in a future OTA system update. The release timeline is yet to be determined.

Important Notes

• Data Availability Varies by Model

The available engine data may vary depending on the motorcycle's brand and model. The data accessible through the CG OBD module depends on the manufacturer's openness and is not a product defect.

• Data Transmission Speed

For motorcycles using the ISO 9141 K-line protocol, the CG OBD module is not recommended due to high data latency.

• Compatibility Requirements

Please verify whether your motorcycle has an OBD port compatible with CG OBD. If required, purchase the appropriate diagnostic-to-OBD adapter cable.

• BMW Motorcycles

For BMW motorcycles, we recommend using the CGRC LIN module instead for optimal performance.

Installation Instructions

1. Locate the motorcycle's OBD port (usually near the motorcycle's battery).
2. Connect the CG OBD module to the included cable.
3. Plug the module directly into the motorcycle's OBD port.
4. Securely attach the OBD module to a stable position using adhesive.
5. Installation is complete.

How to Pair Your CG OBD Module

1. System Pairing:
   • Navigate to System Settings > Features > OBD on your device.
   • Tap "Start Pairing."
2. Successful Pairing: Return to the home page and access “Meter”. Click on “OBD” in the bottom-left corner to enter the OBD-specific dashboard interface.
