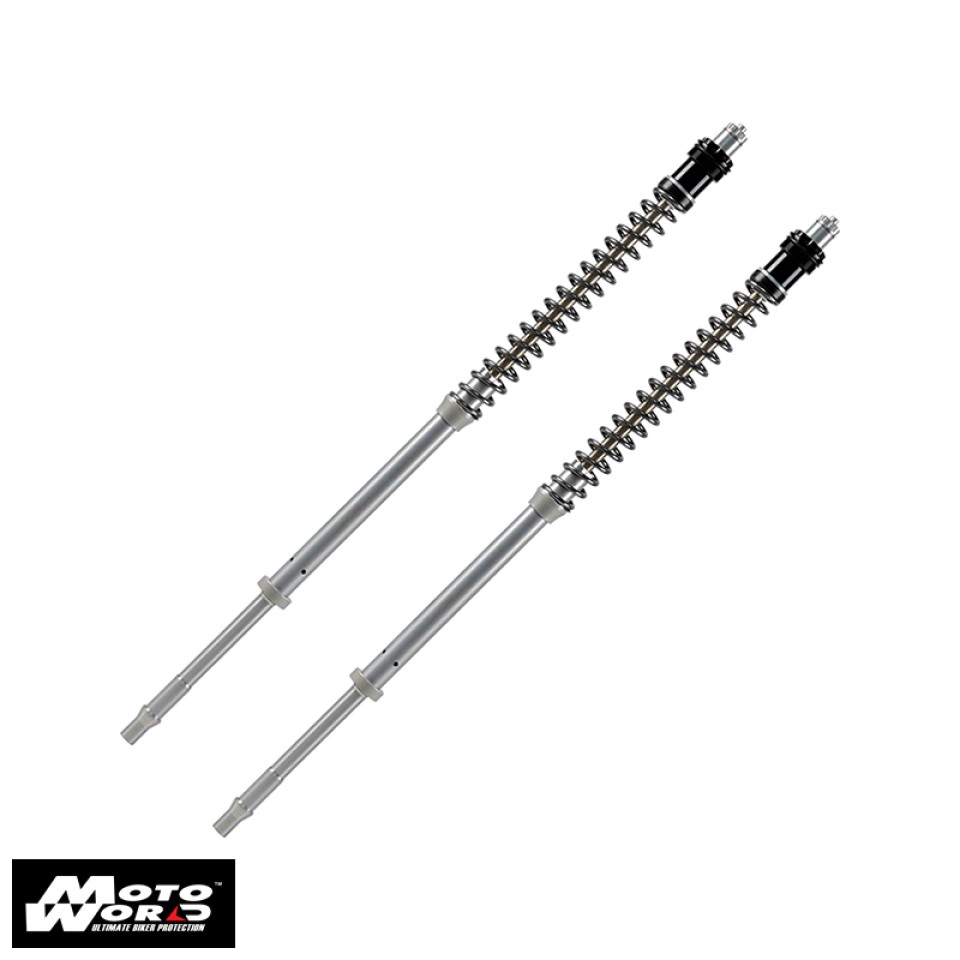

Matris F15Y118K F15K Series Hydraulic Fork Cartridge Kit for Yamaha TMAX 500 2008-2011, TMAX 530 2012-2014

Matris F15Y118K F15K Series Hydraulic Fork Cartridge Kit for Yamaha TMAX 500 2008-2011, TMAX 530 2012-2014

It allows transforming a traditional fork that is not adjustable in a fork with sporty characteristics, fully adjustable in the Spring preload, and in the separate Compression and Extension functions, allowing greater customization of the calibration and set-up. The F15K kit allows an accurate personalization of the set-up for each rider, making the fork more precise, more adjustable, easier to use and better for all types of driving.

Specifies

• Cartridge cylinder d.20 mm in Alum alloy with lapping and anodizing treatment.
• Pumping rod d.12 mm Al 7075 alloy with lapping and hard oxidation treatment.
• Complete set of compression and extension valves D.20 mm machined from solid Alum alloy, supported on self-lubricating sliding bearings and complete with specific lamellar packs for a total control of hydraulic flows.
• Anti-cavitations valve set.
• All Alum alloy components are subjected to anodizing treatment.
• The fork kit is totally reversible.
• The assembly of the kit does not require any modification of the original fork and is completely revisable for correct and periodic maintenance.
• Kit supplied with specific oil (Motorex Fork Oil).

Adjustments

• Spring preload unit, with specific reference marks
• Rebound unit with specific clicks
• Compression unit with specific clicks
