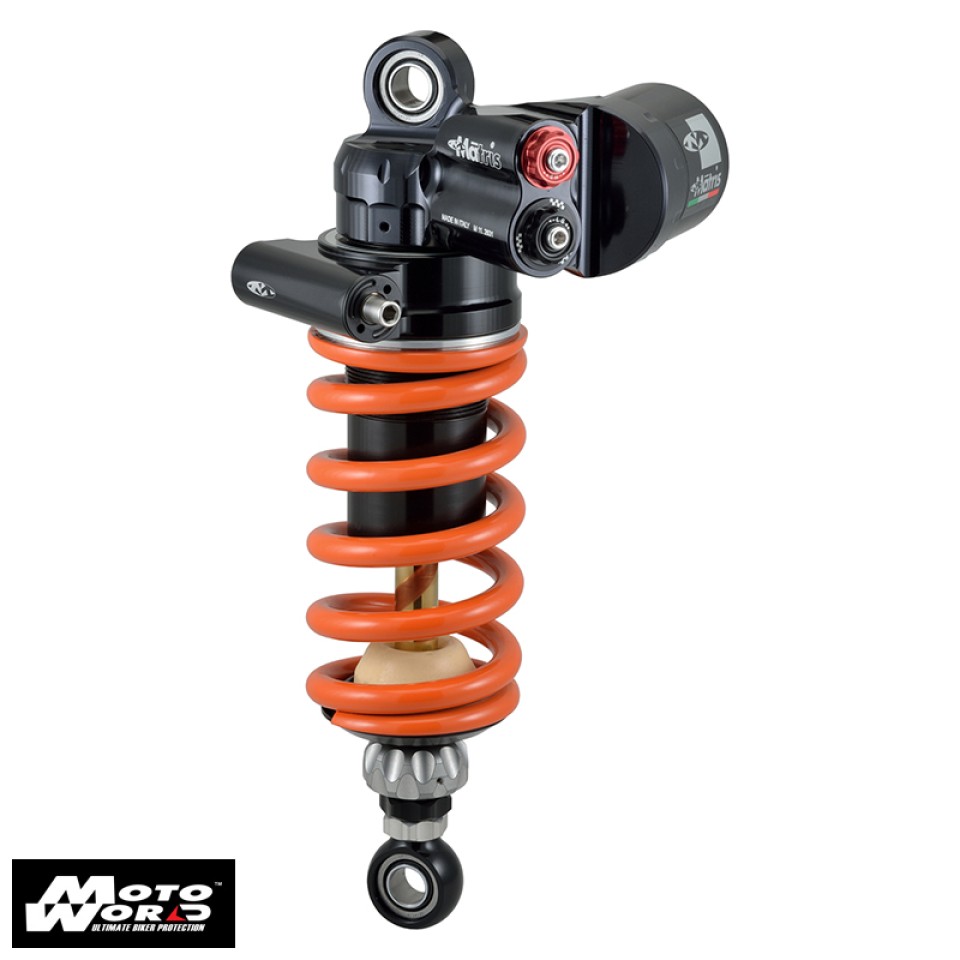

Matris MD106.20R M05R Full Adjustable Monoshock for Ducati 1098/1098S 2007-2008, 1198 2009-2011

Matris MD106.20R M05R Full Adjustable Monoshock for Ducati 1098/1098S 2007-2008, 1198 2009-2011

Shock absorber for road, sport and racing bikes; CAD-CAM systems are used to project and manufacture all the components and only materials of high-end technical and mechanical characteristics are used.

Features

• Tree-way adjustable hydraulic monoshock with separate pressurized expansion tank (Nitrogen gas N2).
• The cylinders are made from Aluminium alloy Al 7075 with lapping and hard oxidation surface treatment.
• The piston rod (d.16 mm) are made from high tensile alloy Steel, faced with hard Chrome and TIN coated.
• Damper adjustment by tree distinct and independent adjustment units:
  • Rebound adjustment
  • Compression adjustment. Low Speed
  • Compression adjustment. High Speed
• Adjustable wheelbase. The lower joint, machined from Alu billet, may be rose jointed or forked.
• The monoshock is available with different “top head” for a better fit on the different bike models.
• Spring in Cr-Mb alloy Steel, available in different rates and calibrated for the different bikes and driver weight.
• All parts, machined from Aluminium alloy are surface treated by anodic oxidation.
• Spring hydraulic preloading system, Range of adjustment: 7 mm.
