Outdo NaCR10S 12V7AH Sodium Battery

MODEL : NaCR10S
PARAMETER : Volts 12V
Rated Capacity : 7.0Ah(10 hours rate)
Charging cut-off voltage : 15V
Starts : ≥80000times
Power : (25°C) 10 hours rate 108Wh

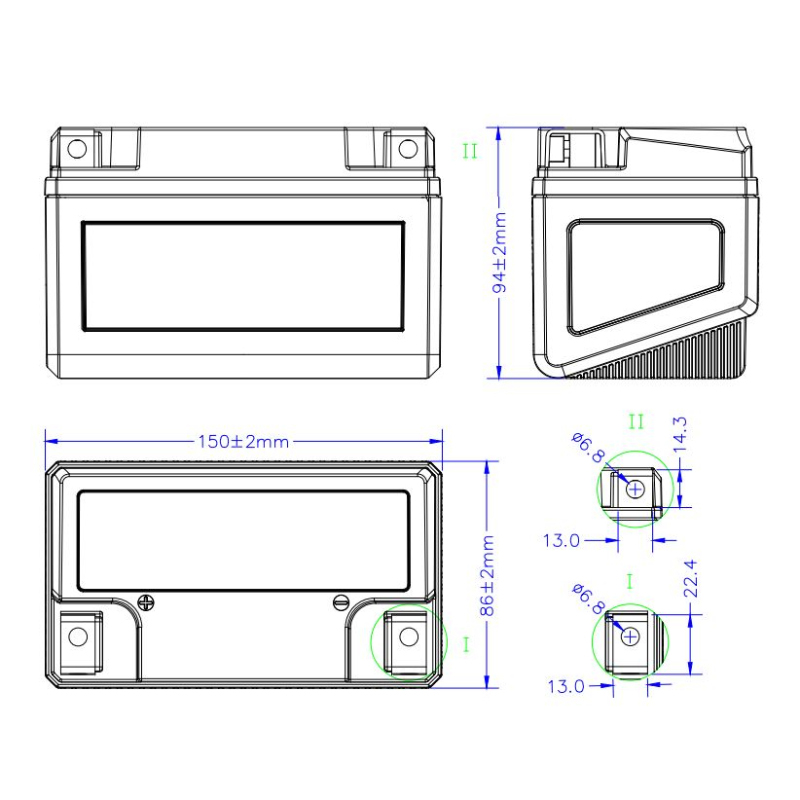

Length : 150±2mm(5.91inch)
Width ; 86±2mm(3.39inch)
Height : 94±2mm(3.70inch)
Weight : 1.36±5%Kg(3.80pound)

Using ambient temperature

• Charge Temperature 0°C~55°C(32°F~131°F)
• Discharge temperature -40°C~66°C(-40°F~140°F)


Self discharge : Approximately 1.5%, Every month, 25°C(77°F)

Starting ability

• Ambient temperature 25°C(77°F),Pulse discharge time ≤5 seconds 315.0A
• Ambient temperature -18°C(-0.4°F),Pulse discharge time ≤5 seconds 180A

  Charging method

• Constant current and constant voltage charging
• Standard charge current : 0.5C Temperature
• Maximum charging current : 3C 25°C(77°F)
• Charging Voltage : 15V


Replace lead-acid battery type : UTX7A-BS   UTZ10S   YTZ10S   YTX7A-BS

1.Ultra-strong starting performance : Support up to 35C pulse discharge at room temperature Quick and reliable starting in -25℃ low temperature environment
2.Excellent safety protection : The frst internal protection device of the battery ,  core electively prevents thermal runaway and ensures the usage safety.
3.Long shelf-life time : Full charge lasts for 18 months without recharging.
4.Ultra-long life : Starting times ≥ 80,000 times.
5.Super over-discharge resistance : Extreme over-discharge to 0 volts, no damage to the battery.
6.Extremely fast charging : 3 minutes to meet the starting needs under the deficit state.
7.360° fexible installation : No risk of leakage, easily mounted in any direction.
