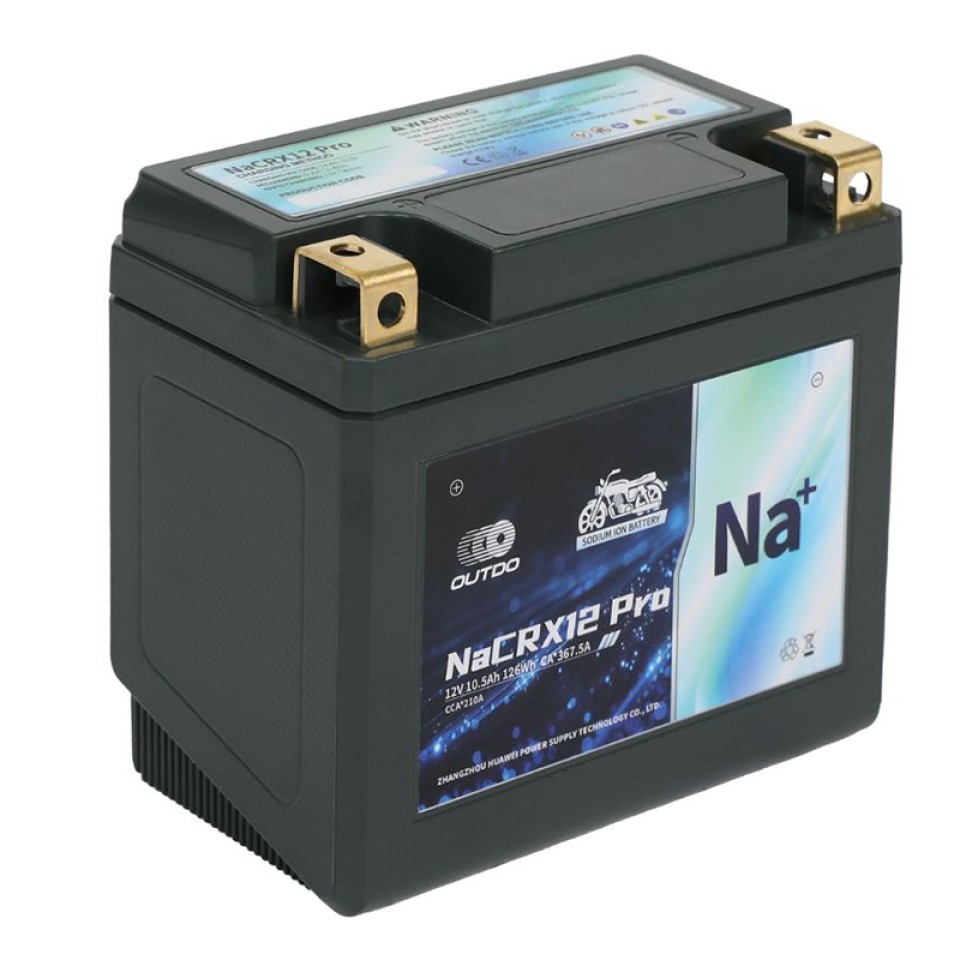

MODEL : NACRX12 PRO
PARAMETER : Volts 12V
Rated Capacity : 10.5Ah(10 hours rate)
Charging cut-off voltage : 15V
Starts : ≥80000times
Power : (25°C) 10 hours rate 126Wh

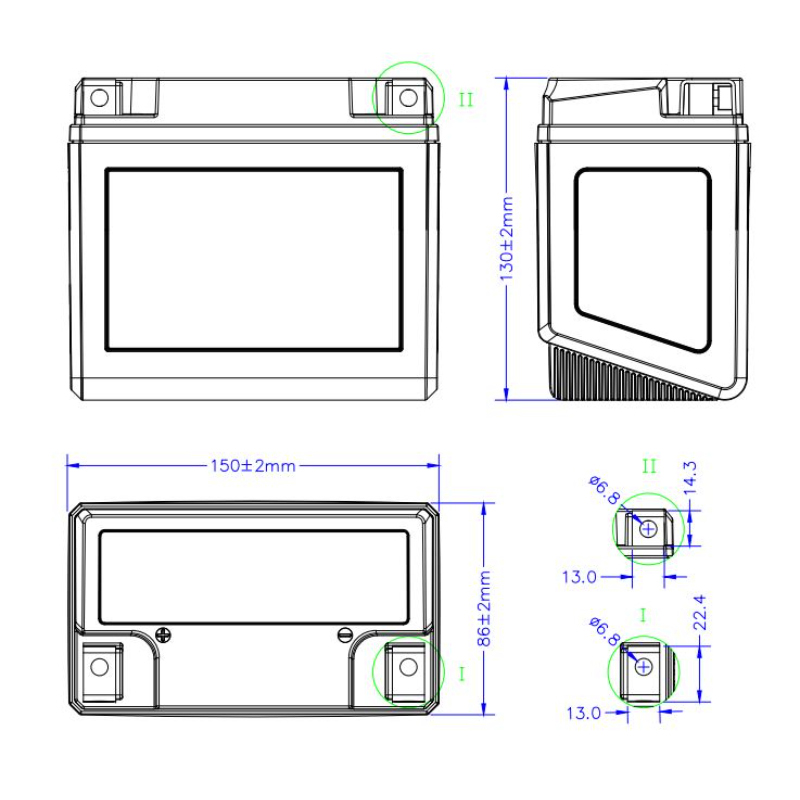

Length : 150±2mm(5.91inch)
Width : 86±2mm(3.39inch)
Height : 130±2mm(5.12inch)
Weight : 1.93±5%Kg(4.25pound)
Using ambient temperature
- Charge Temperature 0°C~55°C(32°F~131°F)
- Discharge temperature -40°C~66°C(-40°F~140°F)
Self discharge :
- Approximately 1.5%, Every month, 25°C(77°F)
Starting ability
- Ambient temperature 25°C(77°F),Pulse discharge time ≤5 seconds 367.5A
- Ambient temperature -18°C(-0.4°F),Pulse discharge time ≤5 seconds 210A
Charging method
- Constant current and constant voltage charging
- Standard charge current : 0.5C Temperature
- Maximum charging current : 3C 25°C(77°F)
- Charging Voltage : 15V
Replace lead-acid battery type : UTX12-BS, YTX12-BS
- Ultra-strong starting performance : Support up to 35C pulse discharge at room temperature Quick and reliable starting in -25℃ low temperature environment
- Excellent safety protection : The frst internal protection device of the battery , core electively prevents thermal runaway and ensures the usage safety.
- Long shelf-life time : Full charge lasts for 18 months without recharging.
- Ultra-long life : Starting times ≥ 80,000 times.
- Super over-discharge resistance : Extreme over-discharge to 0 volts, no damage to the battery.
- Extremely fast charging : 3 minutes to meet the starting needs under the deficit state.
- 360° fexible installation : No risk of leakage, easily mounted in any direction.
